Collimating a Newtonian reflector telescope is a crucial process for maintaining its optimal performance, and there are two primary tools available for this task: the Cheshire eyepiece and the laser collimator.

A Cheshire eyepiece is typically more effective for aligning the secondary mirror, while a laser collimator is generally used for aligning the primary mirror. However, each of these tools can be used independently for full collimation, depending on personal preference and the specific requirements of the telescope.

The article will provide an in-depth analysis of collimation, explaining its importance in the operation of Newtonian telescopes. It will then compare the Cheshire eyepiece and laser collimator in detail, offering insights into how each tool works, their relative ease of use, accuracy, and any potential limitations. By the end of the article, you will have a comprehensive understanding of both tools, enabling you to make an informed decision on which is better suited for your collimation needs.

But first:

What is collimation?

Collimation is a fundamental process in telescope maintenance, particularly for reflector telescopes. It involves precisely aligning the telescope’s optical elements to ensure that light entering the system is accurately collected, reflected, or refracted to produce clear and sharp images.

The primary components typically adjusted during collimation are the primary mirror and secondary mirror in Newtonian telescopes. These adjustments are essential because even minor misalignments can lead to image distortions and reduced image quality.

Proper collimation is essential because even minor misalignments of these mirrors can result in image distortions, aberrations, and reduced image quality. Telescopes can lose collimation due to various factors, including transportation, vibrations, temperature changes, and general wear and tear.

What does a Cheshire eyepiece collimator do, and how does it work?

A Cheshire eyepiece collimator is a specialized tool used in telescope collimation, primarily for reflecting telescopes like Newtonian telescopes. It is designed to assist astronomers in aligning the optical components of their telescopes accurately. The Cheshire eyepiece collimator consists of a cylindrical tube with a peephole or sight hole on one end and a reflective surface on the other.

Here’s how it works:

When inserted into the telescope’s focuser, the Cheshire eyepiece collimator allows astronomers to observe the reflection of light on its reflective surface. By peering through the sight hole, astronomers can compare the position of the reflected light with a reference mark or the center of the reflective surface.

The goal is to align the reflection of the incoming light with the reference point by adjusting the tilt and position of the telescope’s primary and secondary mirrors. Once the alignment is achieved, the telescope is considered collimated, and it should provide clear and precise views of celestial objects.

What is the procedure for collimating a telescope using a Cheshire eyepiece?

Collimating a telescope using a Cheshire eyepiece is a straightforward process that involves the following steps:

  1. Prepare Your Telescope: Ensure that your telescope is set up and stable. It’s essential to perform collimation under stable conditions, ideally during daylight or with bright stars visible.
  2. Insert the Cheshire Eyepiece: Place the Cheshire eyepiece into the focuser of your telescope, just as you would with an eyepiece for regular observations.
  3. Peek Through the Sight Hole: Look through the sight hole of the Cheshire eyepiece. You will see a reflection of the primary mirror’s reflection in the eyepiece’s reflective surface.
  4. Check Alignment: Observe the reflection’s position within the Cheshire eyepiece. It should be centered and concentric with the eyepiece’s cylindrical body. If it appears off-center or misaligned, your telescope’s mirrors are likely out of collimation.
  5. Adjust the Primary Mirror: To correct misalignment, make adjustments to the primary mirror’s position. Most Newtonian telescopes have adjustments on the back of the mirror cell. Use the provided adjustment screws to move the mirror until the reflection in the Cheshire eyepiece aligns with the center.
  6. Recheck and Fine-Tune: After adjusting the primary mirror, recheck the alignment through the Cheshire eyepiece. Fine-tune the adjustments as needed until the reflection is perfectly centered and concentric.
  7. Collimate the Secondary Mirror (if necessary): In some cases, you may also need to adjust the secondary mirror for precise collimation. Use the secondary mirror’s adjustment screws to achieve alignment.
  8. Final Verification: To ensure accurate collimation, you can perform a star test during the night. Choose a bright star and observe its image through a high-power eyepiece. If the star’s image appears sharp and symmetrical, your telescope is well collimated.
  9. Lock Down Adjustments: Once collimation is successful, secure the mirror adjustments to prevent accidental misalignment during transport or storage.

Collimating your telescope with a Cheshire eyepiece ensures that the primary and secondary mirrors are correctly aligned, resulting in sharp and clear astronomical observations. Regular collimation maintenance is essential to maintain your telescope’s optical performance.

What are the advantages and disadvantages of using a Cheshire eyepiece for telescope collimation?

Advantages of a Cheshire eyepiece for telescope collimation:

  1. Simplicity: Cheshire eyepieces are simple and easy to use, making them suitable for beginners and experienced astronomers alike.
  2. Cost-Effective: They are relatively affordable compared to some other collimation tools, making them accessible to a wide range of astronomers.
  3. Effective for Primary Mirror Alignment: Cheshire eyepieces excel at aligning the primary mirror of a reflecting telescope, ensuring it is centered and correctly oriented.
  4. Compact and Portable: They are compact and easy to carry, making them convenient for on-the-go collimation during observing sessions.

Disadvantages of a Cheshire eyepiece for telescope collimation:

  1. Limited to Primary Mirror: Cheshire eyepieces are primarily designed for aligning the primary mirror, so they may not address secondary mirror misalignment or other complex collimation issues.
  2. Subject to User Skill: Achieving precise collimation with a Cheshire eyepiece relies on the user’s skill and experience, which can lead to less accurate results for beginners.
  3. No Laser Alignment: Unlike laser collimators, Cheshire eyepieces do not provide a visible laser beam for easy alignment, which can make the process less intuitive.
  4. Limited in Low Light: Collimating with a Cheshire eyepiece can be challenging in low-light conditions or when collimating in the dark.

In summary, Cheshire eyepieces offer a straightforward and cost-effective method for aligning the primary mirror of a reflecting telescope. They are portable and suitable for basic collimation tasks but may not address more complex alignment issues or provide the convenience of laser collimators. The effectiveness of a Cheshire eyepiece depends on the user’s skill and experience.

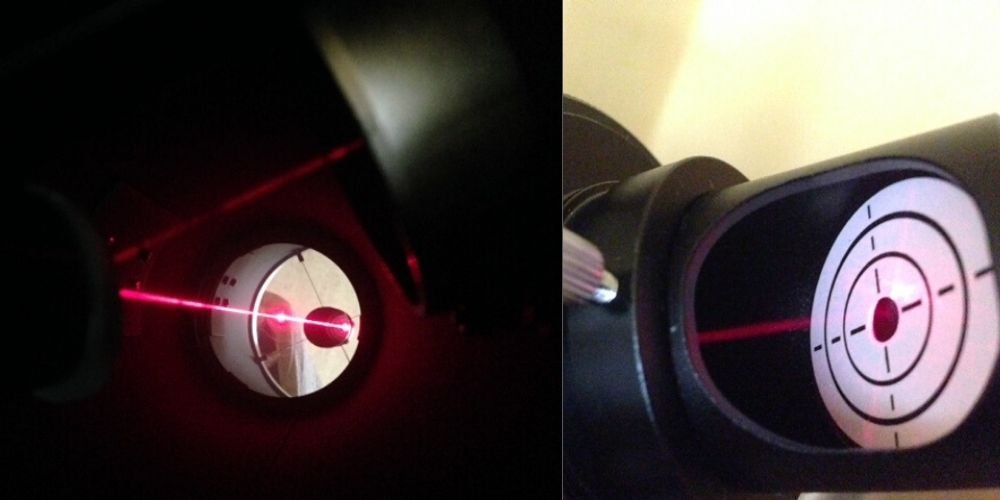

What does a Laser Collimator do, and how does it work?

A laser collimator is a specialized tool used in telescope collimation, primarily for reflecting telescopes like Newtonian telescopes. Its primary function is to assist astronomers in aligning the optical components of their telescopes accurately.

Here’s how it works:

  1. Laser Emitter: A laser collimator features a laser emitter at one end. This emitter generates a narrow and precisely aligned laser beam.
  2. Insertion: The laser collimator is inserted into the telescope’s focuser, just like an eyepiece.
  3. Laser Beam Emission: When turned on, the laser collimator emits a highly visible laser beam through the telescope’s optical path.
  4. Primary Mirror Reflection: The laser beam strikes the telescope’s primary mirror. Ideally, the primary mirror should reflect the laser beam directly back onto the laser collimator.
  5. Collimation Adjustment: The observer then looks through the laser collimator to see where the reflected laser beam hits the collimator’s target or reference mark. The goal is to align the reflected laser beam with the reference mark.
  6. Adjusting Mirrors: If the reflected beam does not align with the reference mark, adjustments to the telescope’s mirrors are needed. For precise primary mirror alignment, adjustment screws on the mirror cell are typically used. Secondary mirror adjustments may also be necessary.
  7. Iterative Process: The observer continues making adjustments and checking the alignment until the laser beam consistently hits the reference mark, indicating that the telescope is well collimated.

What is the procedure for collimating a telescope using a Laser Collimator?

Collimating a telescope with a Laser Collimator is a precise process that involves the following steps:

  1. Prepare Your Telescope: Set up your telescope on a stable mount and ensure it is properly positioned for collimation. You should perform collimation under stable conditions, ideally during daylight or with bright stars visible.
  2. Insert the Laser Collimator: Place the Laser Collimator into the telescope’s focuser, just like you would with a regular eyepiece.
  3. Activate the Laser: Turn on the Laser Collimator to emit a visible laser beam.
  4. Primary Mirror Alignment: The laser beam will strike the primary mirror. Ideally, the reflected laser beam should return precisely along the same path, hitting the target or reference mark on the Laser Collimator.
  5. Observe the Beam: Look through the Laser Collimator and observe where the reflected laser beam lands on the target. If it does not align with the reference mark, your telescope’s mirrors are likely out of collimation.
  6. Adjust the Primary Mirror: To correct the misalignment, use the adjustment screws on the primary mirror cell. Make incremental adjustments until the reflected laser beam consistently hits the reference mark.
  7. Secondary Mirror Adjustment (if necessary): In some cases, you may also need to adjust the secondary mirror for precise collimation. Use the secondary mirror’s adjustment screws to achieve alignment.
  8. Recheck and Fine-Tune: After making adjustments, recheck the alignment by observing the reflected laser beam through the Laser Collimator. Continue fine-tuning the adjustments until the beam consistently aligns with the reference mark.
  9. Final Verification: To ensure accurate collimation, you can perform a star test during the night. Choose a bright star and observe its image through a high-power eyepiece. If the star’s image appears sharp and symmetrical, your telescope is well collimated.
  10. Lock Down Adjustments: Once collimation is successful, secure the mirror adjustments to prevent accidental misalignment during transport or storage.

Collimating your telescope with a Laser Collimator provides a visible and precise method for aligning both the primary and secondary mirrors, resulting in sharp and clear astronomical observations. Regular collimation maintenance is essential for optimal telescope performance.

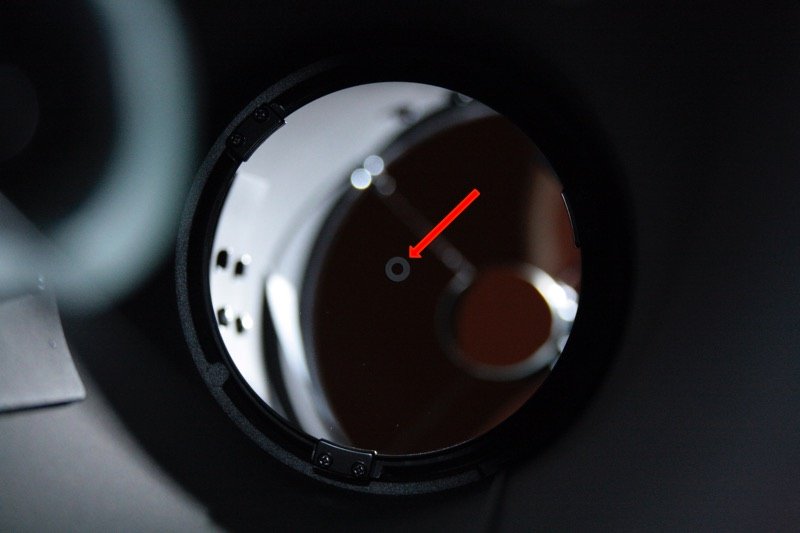

Primary mirror donut
Secondary mirror adjustment screws
Primary mirror adjustment screws

What are the consequences of laser collimator misalignment?

Laser collimator misalignment can occur when the laser beam emitted by the collimator is not properly aligned with the telescope’s optical axis. This misalignment can lead to several issues:

  1. Inaccurate Collimation: The primary purpose of a laser collimator is to assist in precise collimation. When misaligned, it can provide incorrect feedback on the alignment of the telescope’s mirrors, potentially leading to inaccurate collimation adjustments.
  2. Reduced Image Quality: A misaligned laser collimator can result in mirrors that are not correctly aligned, causing image distortions, reduced sharpness, and decreased image quality during astronomical observations.
  3. Difficulty in Correcting Collimation: If the laser collimator itself is not correctly aligned, it becomes challenging to use it as a reliable tool for making collimation adjustments. This can frustrate attempts to achieve accurate collimation.
  4. Wasted Time and Effort: Attempting collimation with a misaligned laser collimator can lead to wasted time and effort, as adjustments made based on inaccurate feedback may need to be repeated multiple times.

To address laser collimator misalignment, it is essential to ensure that the collimator’s laser beam is aligned with the collimator’s optical axis. Regularly checking and calibrating the laser collimator can help prevent these issues and ensure that it provides accurate feedback for precise telescope collimation.

Here is an excellent video explaining how to collimate a laser collimator:

What are the pros and cons of using a Laser Collimator for telescope collimation?

Advantages of using a Laser Collimator for telescope collimation:

  1. Precision: Laser collimators provide a visible laser beam that allows for precise alignment of the telescope’s mirrors. This precision can result in accurate collimation, leading to improved image quality.
  2. Ease of Use: They are relatively easy to use, making them suitable for both beginners and experienced astronomers. The visible laser beam simplifies the collimation process.
  3. Primary and Secondary Mirror Alignment: Laser collimators are effective for aligning both the primary and secondary mirrors of reflecting telescopes, ensuring comprehensive collimation.
  4. Quick Checks: They allow for quick and convenient collimation checks during observing sessions, enabling astronomers to maintain optimal performance throughout the night.

Disadvantages of using a Laser Collimator for telescope collimation:

  1. Cost: Laser collimators can be more expensive than other collimation tools like Cheshire eyepieces, making them less accessible for some astronomers, especially beginners.
  2. Battery Dependence: Laser collimators require batteries to operate the laser emitter, and if the batteries run out during a session, collimation becomes impossible.
  3. Limited to Reflecting Telescopes: Laser collimators are primarily designed for reflecting telescopes and may not be suitable for refracting telescopes or other optical systems.
  4. Alignment Challenges: Achieving accurate collimation with a laser collimator relies on ensuring that the collimator itself is well-aligned. Misalignment of the collimator can lead to incorrect collimation adjustments.
  5. Less Intuitive for Some: While laser collimators are user-friendly for many astronomers, some individuals may find them less intuitive than traditional collimation tools.

In summary, using a Laser Collimator for telescope collimation offers the advantage of precision and ease of use, particularly for reflecting telescopes. However, they come with a cost and may require battery maintenance. It’s essential to ensure the collimator’s alignment for accurate results and be aware of their compatibility with specific telescope types.

Collimate like a pro: Make the right decision between Cheshire Eyepiece and Laser Collimator today!

In the debate between the Cheshire eyepiece and the Laser Collimator, there is no one-size-fits-all answer to which is better. Each collimation tool serves its purpose and has its advantages and disadvantages.

The Cheshire eyepiece offers simplicity, cost-effectiveness, and effectiveness in aligning the primary mirror, making it a valuable tool, especially for beginners. On the other hand, the Laser Collimator provides precision and ease of use, aligning both primary and secondary mirrors, but comes with a higher cost and battery dependence.

Ultimately, the choice between these tools depends on your telescope type, your collimation needs, and your personal preferences. Experienced astronomers may find value in having both tools in their arsenal for comprehensive collimation. Whichever tool you choose, the key to successful collimation lies in understanding its operation, practicing its use, and ensuring that it is well-maintained and properly aligned.
